DC EV Charger

European Standard EV Charging Station
The HK series EV charger has combined the charging interface, HMI, battery charger, communication,
billing system functions into one integrated cabinet, with modular design, thus could easily achieve
convenient installation and commissioning and simple maintenance, etc.

Dekon Intelligent DC charging pile pays great attention to the safety performance of the product. The chargers
are mainly used for fast charging of pure electric vehicles. It can be installed in large parking lots, residential
areas, shopping malls, hospitals, transfer stations, airports, parks and scenic spots.

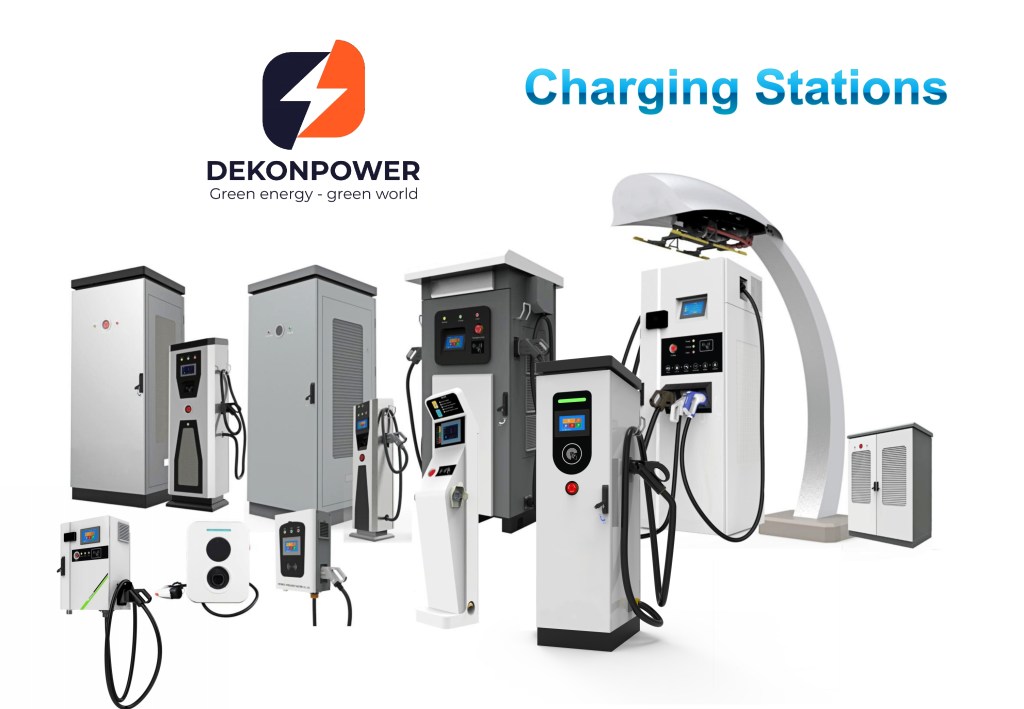

DC EV CHARGER PRODUCTS RANGES

All chargers’ charging connectors could be supported, which is: CCS2, CHAdeMO, GB/T and CCS1.

DC Wall charger

Power：30kW
Input voltage : 400V/AC±15%
Input current(MAX) :110A/165A/220A/275A
Input frequency: 45-65Hz
Output Voltage: 150~1000VDC Output
current: 0-100A
Communication protocol: DIN70121
Back office communication: OCPP1.6J

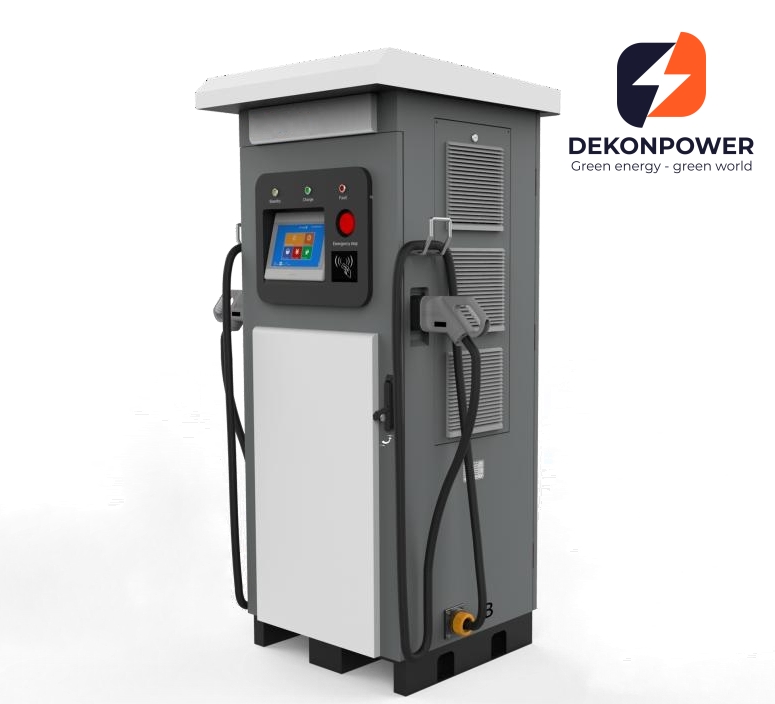

Integrated DC Charging Point


Power：60kW~160kW
Input voltage : 400V/AC±15%
Input current(MAX) :110A/165A/220A/275A Input
frequency: 45-65Hz
Output Voltage: 150~750VDC/150~1000VDC
Output current:100A/150A/200A
Communication protocol: DIN70121(support ISO15118)
Back office communication: OCPP1.6J

Integrated DC Charging Point–

Power：60kW~300kW
Input voltage : 400V/AC±15%
Input current(MAX) :110A/165A/220A/275A Input
frequency: 45-65Hz
Output Voltage: 150~750VDC/150~1000VDC
Output current:100A/150A/200A
Communication protocol: DIN70121(support ISO15118)
Back office communication: OCPP1.6J

Multifunctional Charging Pile
(CCS2/CHAdeMO/TYPE 2)

Power: 60,120,180kW DC+43kW AC
Input voltage :400V/AC±15%
Input current(MAX) :393A
Input frequency: 45-65Hz
Output Voltage: 150-1000VDC
Output current(MAX):200A(CCS2)+125A(CHAdeMO)+63A(Type 2)
Charging mode: support simultaneous charging
Protection: IP55
Communication protocol: DIN70121(support ISO15118) Back office
communication: OCPP1.6J

Split DC Charging System
Max equip with 5 terminals

Power：150kW~300kW
Input voltage : 400V/AC±15%
Input current(MAX) :220A/330A/440A/550A Input
frequency: 45-65Hz
Output Voltage:
Output current: 200A
Communication protocol: DIN70121(support ISO15118)
Back office communication: OCPP1.6J

Liquid Cooled Ultra Fast Charging System

Power：180kW~480kW
Input voltage : 400V/AC±15% Input
current(MAX) :330A/660A
Input frequency: 45-65Hz
Output Voltage: 150~1000VDC
Output current: 500A
Communication protocol: DIN70121(support ISO15118)
Back office communication: OCPP1.6J

Split Pantograph System for electric bus

Split Pantograph System

Power：300kW/600kW
Input voltage : 400V/AC±15%
Input current(MAX) :550A/1100A
Input frequency: 45-65Hz Output
Voltage: 150-1000VDC
Output current(MAX): 500A/800A
Communication mode: WIFI+PLC
Communication protocol:ISO15118 Back office
communication: OCPP1.6J Charging
mode: Falling type (rising type supported)
